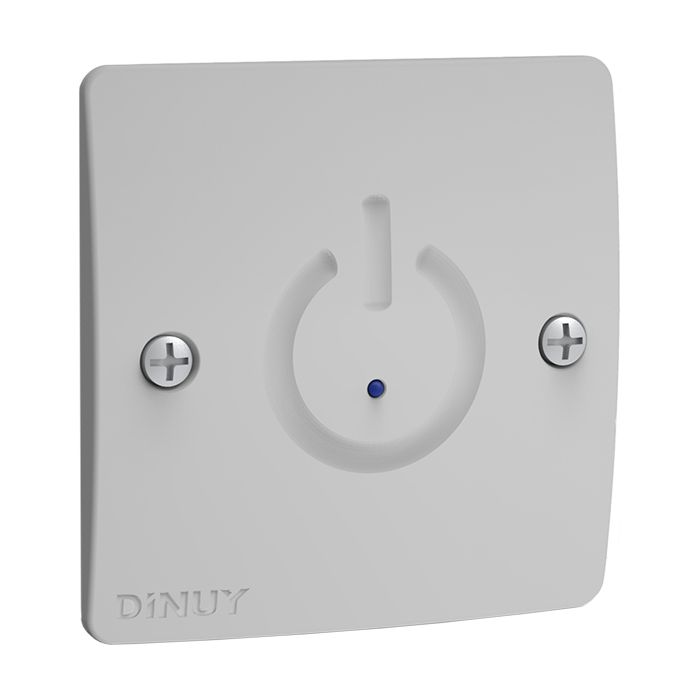

DINUY - PT EMP EL4

Pulsador táctil temporizado a 3 hilos empotrable

Ref: 176552 - EAN: 8422447011760
Pulsador táctil temporizado a 3 hilos em

Descripción

Montaje empotrado en caja de mecanismo universal Instalación a 3 hilos: fase, neutro y vuelta de lámpara Válido para LED, Incandescencia, Halógenas y Extractores LED luminoso que permanece iluminado permanentemente Rearmable en cualquier momento Tornillos de seguridad para impedir su robo Color: Blanco

Características Técnicas

  • Function Electronic
  • Mounting method Flush-mounted
  • Number of contacts as normally open contact 1
  • Control voltage 1 230 V
  • Type of control voltage 1 DC
  • Type of control voltage 2 DC
  • Rated switch current 16 A
  • Release-delay 1800 min
  • Wiring system 3 wire configuration
  • Pre-warning of switching-off No
  • Current surge function selectable No
  • Repetitive None
  • Supply voltage 230 V
  • Voltage type (supply voltage) DC
  • Max. incandescent lamp load 3000 W
  • Max. load fluorescent lamp 1300 VA
  • Max. load fluorescent lamp (Duo circuit) 1300 VA
  • Max. load fluorescent lamp (parallel compensated) 1300 VA
  • Max. switching power LED 400 W
