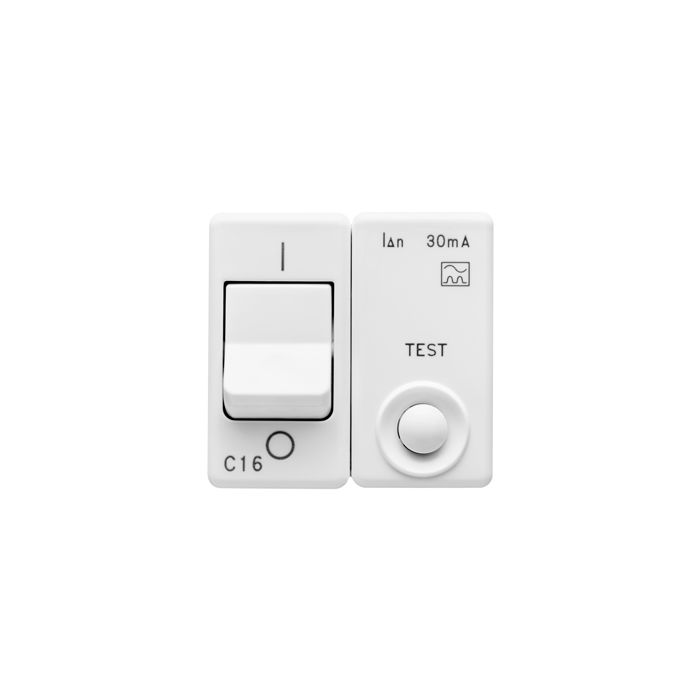

GEWISS - GW20450

INTERRUPTOR AUTOMÁTICO MAGNETOTÉRMICO DIFFERENCIAL - 230V ac - CLASSE A - 1P+N 16A 3kA 30mA CURVA C - 2 MÓDULOS - SYSTEM WHITE

Ref: 123433 - EAN: 8011564113022
I.D.MAG.1P+N C16 IDN 30MA 230V 3KA SY/WT

Descripción

Serie SYSTEM WHITE Dispositivos modulares - Los dispositivos modulares System ofrecen la posibilidad de crear infinitas combinaciones de mecanismos, gracias a una gama completa capaz de satisfacer todas las necesidades estéticas, funcionales y de instalación. Color y acabado: blanco brillante, brillante y versátil. Ideal para soluciones integradas (para cajas rectangulares o cuadradas), paredes y aplicaciones especiales. La línea incluye mandos, tomas de corriente, protecciones, señales, conectores y dispositivos para el control, seguridad y confort del hogar.

Características Técnicas

  • Frequency 50/60 Hz
  • Leakage current type A
  • Voltage type AC
  • Release characteristic C
  • Degree of protection (IP) IP20
  • Disconnection characteristic Undelayed
  • Concurrently switching neutral conductor Si
  • With interlocking device No
  • Flush-mounted installation Si
  • Anti-nuisance tripping version No
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 230 V
  • Rated current 16 A
  • Rated fault current 0.03 A
  • Current limiting class 3
  • Rated short-circuit breaking capacity according to EN 61009 3 kA
  • Width in number of modular spacings 2
  • Built-in depth 30 mm
