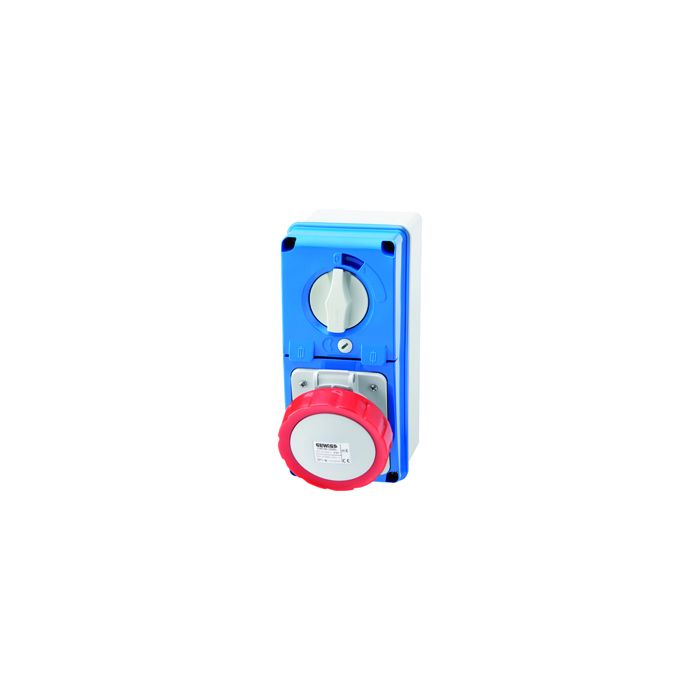

GEWISS - GW66231N

BASE FIJA INTERBLOQUEADAS VERTICAL - CON FONDO - CON BASE PORTAFUSIBLES - 3P+N+T 16A 346-415V - 50/60HZ 6H - IP67

Ref: 124288 - EAN: 8011564742543
B.INTER. VT C/F. 3P+N+T 16A 400V 6H CBF

Descripción

Serie IB Base interbloqueada IEC 309 - Sistema de bases industriales para la distribución de energía en el ámbito terciario e industrial, dotadas de interruptor de bloqueo, que satisfacen las exigencias más variadas de profesionales instaladores y cuadristas. La serie IB se compone de 4 líneas de producto: bases verticales estándar IP67, bases verticales para usos severos IP66, bases horizontales IP44 y bases compactas IP44 e IP55.

Características Técnicas

  • Voltage according to EN 60309-2 380-415 V (50+60 Hz) red
  • Model Base unit and cover
  • Protection Cylindrical fuse
  • Degree of protection (IP) IP67
  • Switch Mechanical locking
  • Surface treatment contacts Nickel-plated
  • Type of switch None
  • Contact material Other
  • Housing material Plastic
  • Identification colour Red
  • With earth leakage switch No
  • Empty locations on mounting rail No
  • Military model No
  • IEC-amperage 16 A
  • Number of poles 5
  • Clock hour position 6 h
