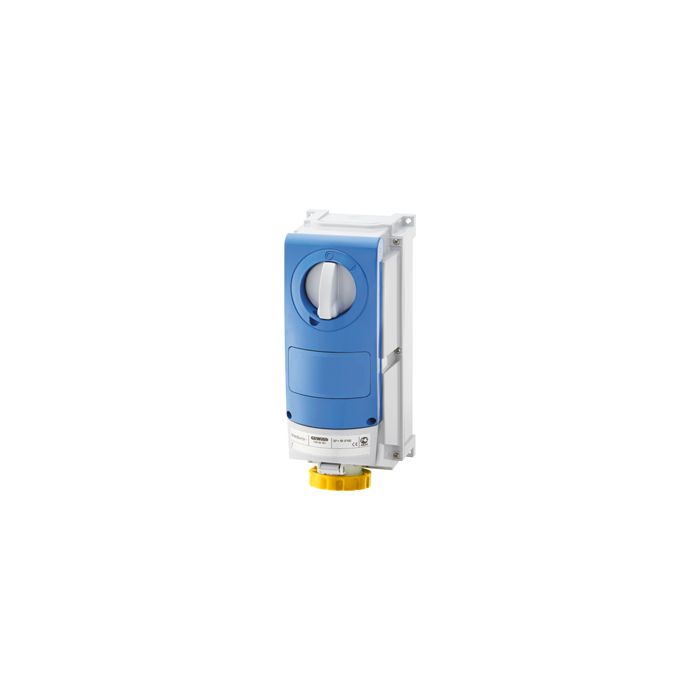

GEWISS - GW66524

BASE FIJA INTERBLOQUEADAS VERTICAL - CON FONDO - SIN BASE PORTAFUSIBLES - PARA USOS SEVEROS - 2P+T 63A 100 - 130V - 50/60HZ 4H - IP66

Ref: 124329 - EAN: 8011564098763
B.USOS SEV. IP66 C/F 2P+T 63A 110V

Descripción

Serie IB Base interbloqueada IEC 309 - Sistema de bases industriales para la distribución de energía en el ámbito terciario e industrial, dotadas de interruptor de bloqueo, que satisfacen las exigencias más variadas de profesionales instaladores y cuadristas. La serie IB se compone de 4 líneas de producto: bases verticales estándar IP67, bases verticales para usos severos IP66, bases horizontales IP44 y bases compactas IP44 e IP55.

Características Técnicas

  • Voltage according to EN 60309-2 110 V (50+60 Hz) yellow
  • Model Base unit and cover
  • Degree of protection (IP) IP66
  • Switch Mechanical locking
  • Surface treatment contacts Nickel-plated
  • Type of switch None
  • Protection None
  • Contact material Other
  • Housing material Plastic
  • Identification colour Yellow
  • With earth leakage switch No
  • Empty locations on mounting rail No
  • Military model No
  • IEC-amperage 63 A
  • Number of poles 3
  • Clock hour position 4 h
