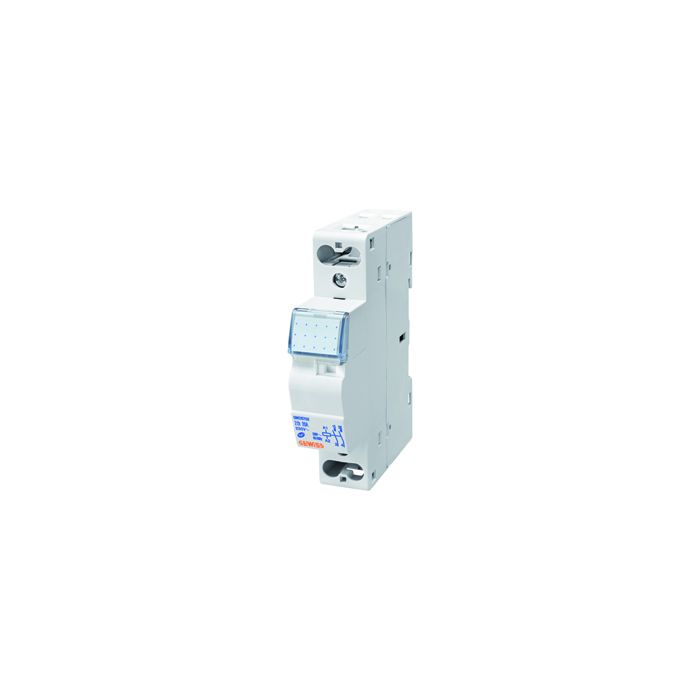

GEWISS - GWD6703

CONTACTOR CTR - 20A 2NA 230V - 1 MODULÓ

Ref: 235167 - EAN: 8011564809338
CONTACTOR 230V 2NA 20A 1M

Descripción

Serie 90 AM Accesorios modulares - La Serie 90 AM, además de auxiliares para interruptores de protección, está constituida por múltiples accesorios modulares útiles para protección, mando, programación, medida y señalización en instalaciones eléctricas.

Características Técnicas

  • Voltage type (operating voltage) AC
  • Voltage type (excitation voltage) AC
  • Utilization category according to EN IEC 60947-4-1 AC-1
  • Degree of protection (IP) IP20
  • Slider for hand switch No
  • Additional equipment possible Si
  • With day/night function No
  • Hum-free Si
  • Rated operation current 20 A
  • Number of contacts as normally open contact 2
  • Number of contacts as normally closed contact 0
  • Width in number of modular spacings 1
  • Built-in depth 72 mm
  • Rated operating voltage 400 V
  • Rated excitation voltage 230 V
