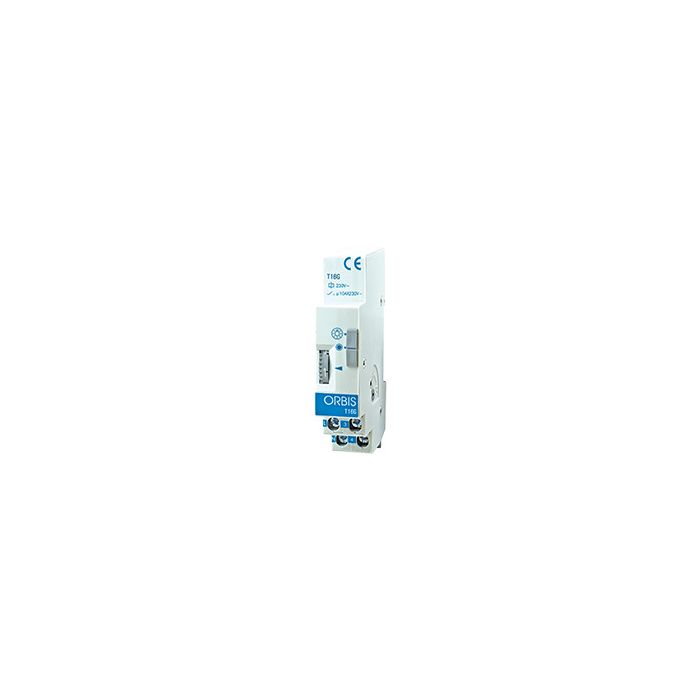

ORBIS - OB060100

T-16 G_230 V ac 50/60 Hz

Ref: 131950 - EAN: 8426709001179
AUT.ESCAL.MDR.GARAJE T-16G 230V 3 MIN 30

Descripción

T -16 G 230 V AC 50-60 HZ MODULAR GARAJE;DE 3 MIN A 30 MIN

Características Técnicas

  • Function Mechanical
  • Mounting method DIN rail
  • Width in number of modular spacings 1
  • Built-in depth 59 mm
  • Control voltage 1 230 V
  • Type of control voltage 1 AC
  • Frequency control voltage 1 50 Hz
  • Rated switch current 10 A
  • Max. switching current (cos phi = 0.6) 10 A
  • Release-delay 3 min
  • Push button glow-lamp current 50 mA
  • Wiring system 3 and 4 wire configuration
  • Repetitive Repetitive
  • Supply voltage 230 V
  • Voltage type (supply voltage) AC
  • Max. incandescent lamp load 2000 W
  • Max. load fluorescent lamp (parallel compensated) 800 VA
