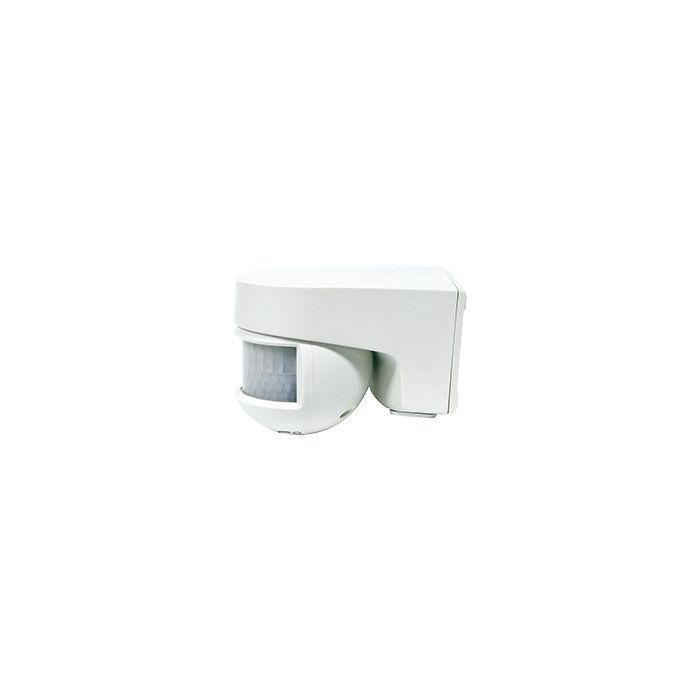

ORBIS - OB134312

ISIMAT_140º 230 Va.c. 50- Hz

Ref: 185256 - EAN: 8426709106386
DET.MVTO.ISIMAT SB.PARED ORIENT.140° CAM

Descripción

ISIMAT 140 230 V A.C 50HZ S/PARED 140º;CAPTACION, DETECCION FRONTAL 12M;LATERAL 8 M Y 20ºC 5- 2000LUX

Características Técnicas

  • Model Movement sensor
  • Sensor type Passive infrared
  • Optimum mounting height 2.5 m
  • Max. reach sideways 8 m
  • Max. reach frontally 12 m
  • Response value sensitivity adjustable Si
  • Response value luminosity adjustable Si
  • Mounting method Surface mounted
  • Colour White
  • Degree of protection (IP) IP55
  • Voltage type AC
  • Frequency 50 Hz
  • Nominal voltage 230
  • Min. switch-on time 3 s
  • Max. duty cycle 30 min
  • Detection angle horizontal 0 °
  • Response value luminosity 5 lx
  • Max. switching power 1000 W
  • Max. starting current 5 A
