ORBIS - OB137112

CIRCUMAT + 230 V 50/60 HZ PASO x CERO

Ref: 254212 - EAN: 8426709113209
DET.MVTO.CIRCUMAT+TECHO EXTRPLN.360°

Descripción

CIRCUMAT + 230V AC 50/60 HZ;EXTRAPLANO MONTAJE EN TECHO, 360º,;DETECCION 7M ø Y 2,5M DE ALTURA. 10 S A;30 min. FUNCION PULSO 1 S

Características Técnicas

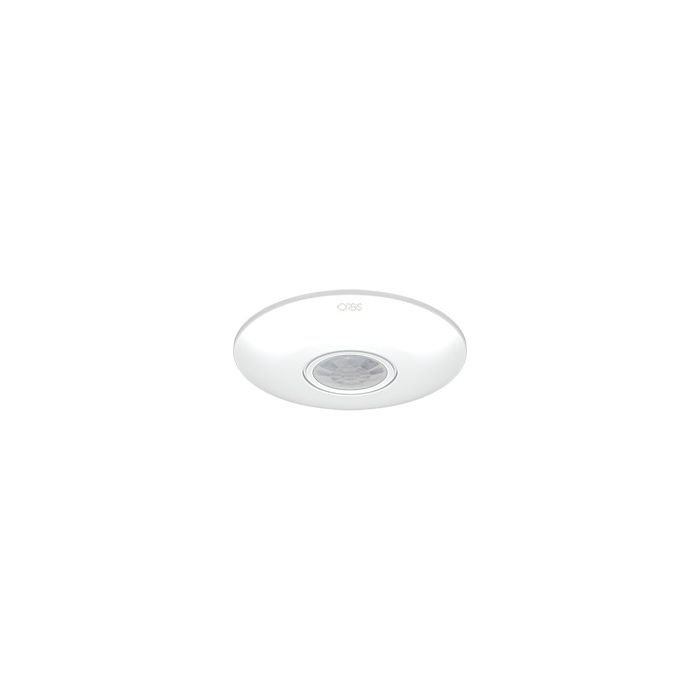

  • Model Movement sensor
  • Sensor type Passive infrared
  • Optimum mounting height 3 m
  • Diameter reach on floor 7 m
  • Response value luminosity adjustable Si
  • Mounting method Surface mounted
  • Material Plastic
  • Colour White
  • Degree of protection (IP) IP20
  • Voltage type AC
  • Frequency 50 Hz
  • Nominal voltage 230
  • Min. switch-on time 10 s
  • Max. duty cycle 30 min
  • Detection angle horizontal 0 °
  • Response value luminosity 3 lx
  • Max. switching power 1200 W
  • Temperature -20 °C
  • Number of switching zones 1
