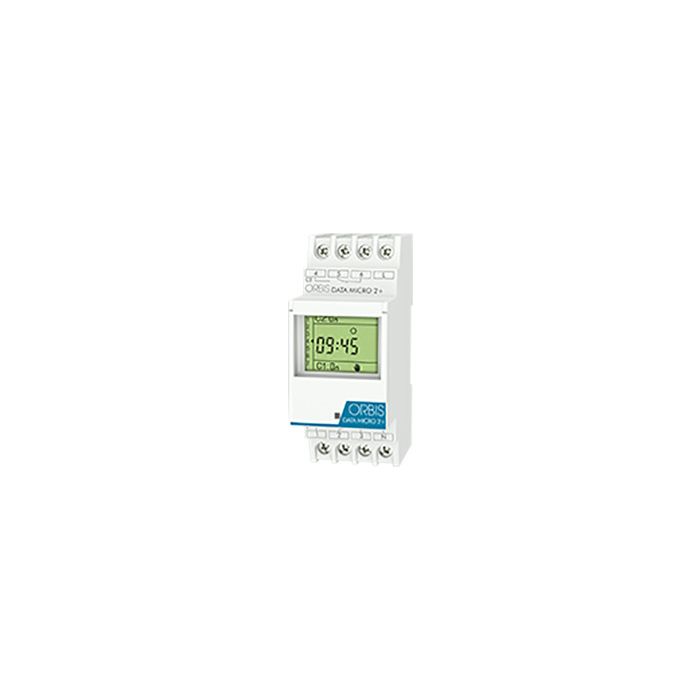

ORBIS - OB172012N

DATA MICRO + 230V

Ref: 132006 - EAN: 8426709103705
INT.HOR.DIG.DATA MICRO+230V 1 CIR.CONMD.

Descripción

DATA MICRO + 230 V A.C 50-60 HZ;INST. CARRIL DIN, 1 CIRC. CONMUTADO;DIA- SEMANA, 32 ESP. MEMORIA

Características Técnicas

  • Mounting method DIN rail
  • Number of channels 1
  • Supply voltage 230 V
  • Voltage type (supply voltage) AC
  • Frequency supply voltage 50 Hz
  • Autonomy in years 4
  • Weekly program Si
  • Holiday program Si
  • Impulse program Si
  • Quartz controlled Si
  • Contact type Change-over contact
  • Shortest switching time channel 1 1 min
  • Number of memory locations 32
  • Automatic switching summer-/winter time Si
  • Suitable for manual operation Si
  • Nominal switching current at 250 V AC 16 A
  • Potential free switch contact Si
  • Degree of protection (IP) IP20
  • Width in number of modular spacings 2
  • Width 35 mm
