ORBIS - OB709200

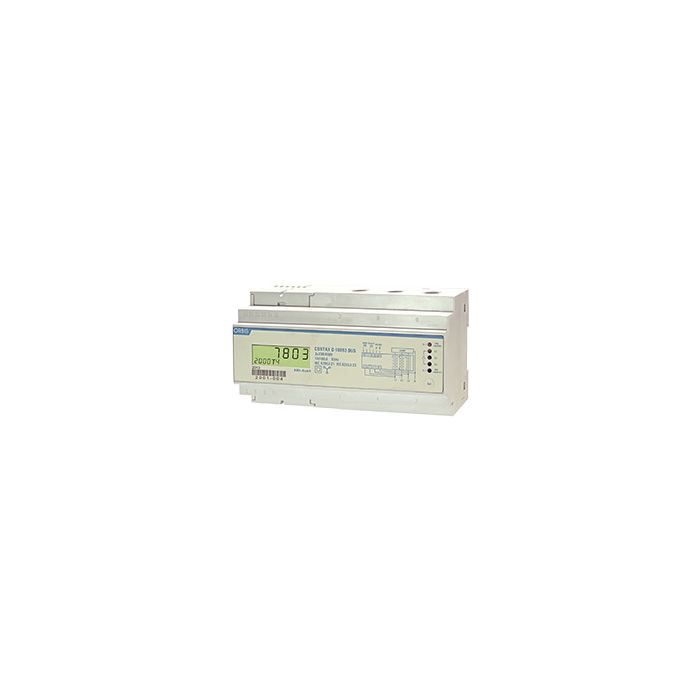

CONTAX D10093 BUS

Ref: 224336 - EAN: 8426709109806
CTD.TRIF.MDA.DCTA.CONTAX D-10093 BUS 10

Descripción

CONTAX D10093 BUS 3x230- 400 A.C+N 50 HZ;MEDIDA DIRECTA 10 (100) A, TRIFASICO,;ACTIVA- REACTIVA, BIDIRECCIONAL, 9 MOD.;COMUNICACION RS485, 4 TARIF. MAXIMAS Y;CURVA DE CARGA.

Características Técnicas

  • Type of meter Electronic
  • Nominal current (In) 10 A
  • Max. current (Imax) 100 A
  • Nominal voltage (Un) N-L 230 V
  • Nominal voltage (Un) L-L 400 V
  • Frequency 50 Hz
  • Accuracy class B
  • Pole type Four conductor
  • Model Direct measurement
  • Energy type Effective power and blind power
  • Suitable for Purchase/supply
  • Tariff type Multi-tariff
  • Tariff control Internal/external
  • Measurement type load profile Si
  • Approval Domestic
  • Pulse output Electrical
  • Pulse type S0
  • Pulse rate 800 Imp/kWh (kvarh)
  • Type of indication Digital
  • Mounting method DRA (DIN-rail adapter)
