SOLERA - 5314

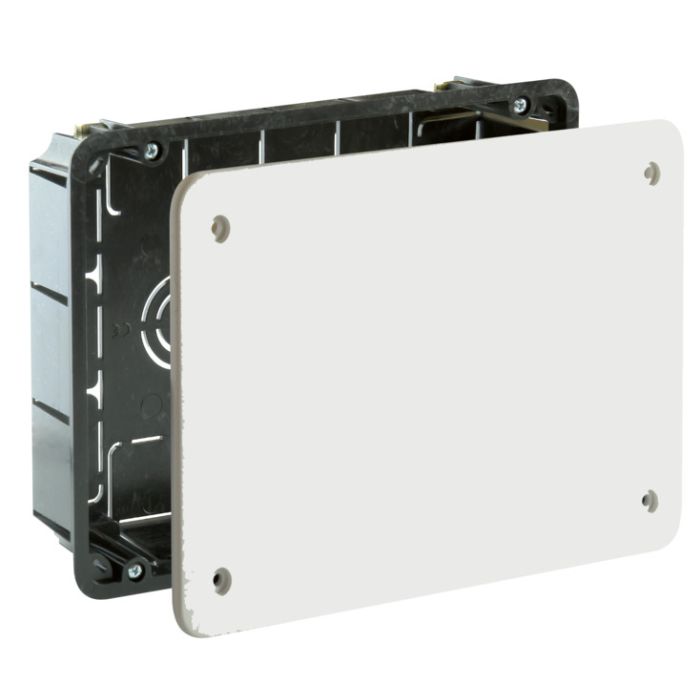

Caja de conexión de empotrar en tabique hueco. De 194 x 154 mm. Tapa con tornillos.

Ref: 144431 - EAN: 8423220011953
CAJA 194X154X50 TORNILLO TAB.H

Descripción

Caja de conexión de empotrar en tabique hueco. De 194 x 154 mm. Tapa con tornillos.Profundidad 50 mm. 8 entradas para tubo Ø 25 mm, 2 entradas para tubo Ø 32 mm y 6 entradas para tubo Ø 40 mm.

Características Técnicas

  • Mounting method Hollow wall
  • Shape Rectangular
  • Construction type Cable junction box
  • Equipped with None
  • Length 194 mm
  • Width 154 mm
  • Depth 50 mm
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter Other
  • Number of inlets 8
  • Material Plastic
  • Halogen free Si
  • Colour Black
  • Cover model Blind cover
  • Transparent cover No
  • Cover attachment Screwed
