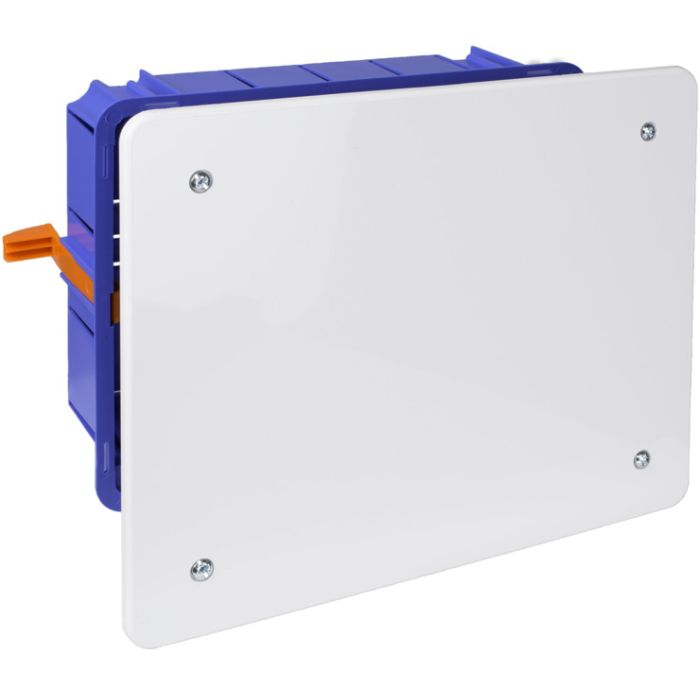

SOLERA - 5314GW

Caja de conexión de empotrar en tabique hueco. De 188 x 148 x 50 mm. Tapa con tornillos. Sistema de fijación mediante bridas.

Ref: 276651 - EAN: 8423220204676
CAJA 194X154X50 HILO INCANDES.

Descripción

Caja de conexión, 188x148x50mm. Tapa con tornillos. Para tabique hueco. Fijación Bridas. 8 entradas tubo 25Ø, 2 entradas tubo 32Ø y 6 entradas tubo 40Ø. Laterales petroq.

Características Técnicas

  • Mounting method Hollow wall
  • Shape Rectangular
  • Construction type Cable junction box
  • Equipped with None
  • Length 188 mm
  • Width 148 mm
  • Depth 50 mm
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter Other
  • Number of inlets 8
  • Material Plastic
  • Halogen free Si
  • Colour Blue
  • Cover model Blind cover
  • Transparent cover No
  • Cover attachment Screwed
