SOLERA - 5363GW

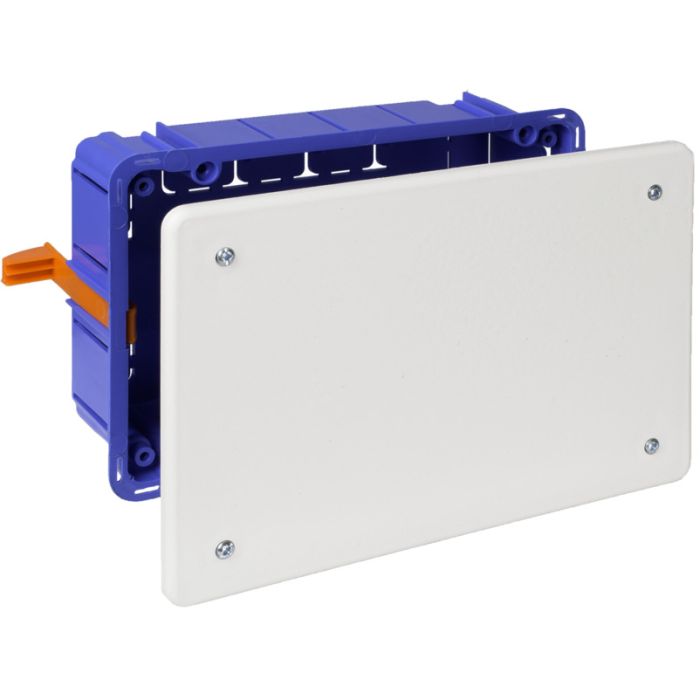

Caja de conexión de empotrar en tabique hueco. De 170 x 112 x 47 mm. Tapa con tornillos. Sistema de fijación mediante bridas.

Ref: 276652 - EAN: 8423220239623
CAJA 170X112X47 HILO INCADES.

Descripción

Caja de conexión, 170x112x47mm. Tapa con tornillos. Para tabique hueco. Fijación bridas. 16 entradas tubo 25Ø.

Características Técnicas

  • Mounting method Hollow wall
  • Shape Rectangular
  • Construction type Cable junction box
  • Equipped with None
  • Length 170 mm
  • Width 112 mm
  • Depth 47 mm
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter 25 mm
  • Number of inlets 16
  • Material Plastic
  • Halogen free Si
  • Colour Blue
  • Cover model Blind cover
  • Transparent cover No
  • Cover attachment Screwed
