SOLERA - 5530

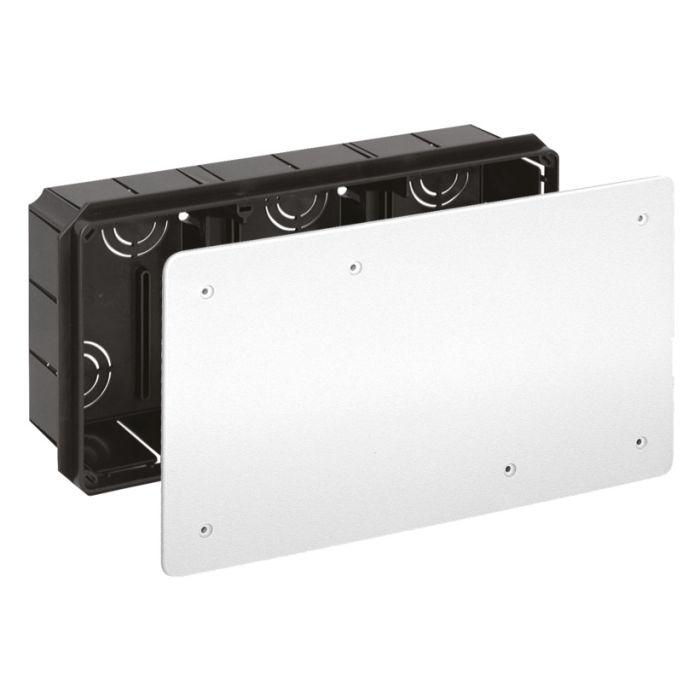

Caja de conexión de empotrar. De 300 x 160 x 70 mm. Tapa con tornillos.

Ref: 144458 - EAN: 8423220011984
CAJA 300X160X70 TAPA TORNILLOS

Descripción

Caja de conexión de empotrar. De 300 x 160 mm. Tapa con tornillos.Profundidad 70 mm. 14 entradas para tubo de Ø 32 y 10 entradas para tubo Ø 40 mm. Dos tabiques de separación.

Características Técnicas

  • Mounting method Flush-mounted
  • Shape Rectangular
  • Construction type Cable junction box
  • Equipped with None
  • Length 300 mm
  • Width 160 mm
  • Depth 70 mm
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter Other
  • Number of inlets 14
  • Material Plastic
  • Halogen free Si
  • Colour Black
  • Cover model Blind cover
  • Transparent cover No
  • Cover attachment Screwed
