SOLERA - 5825

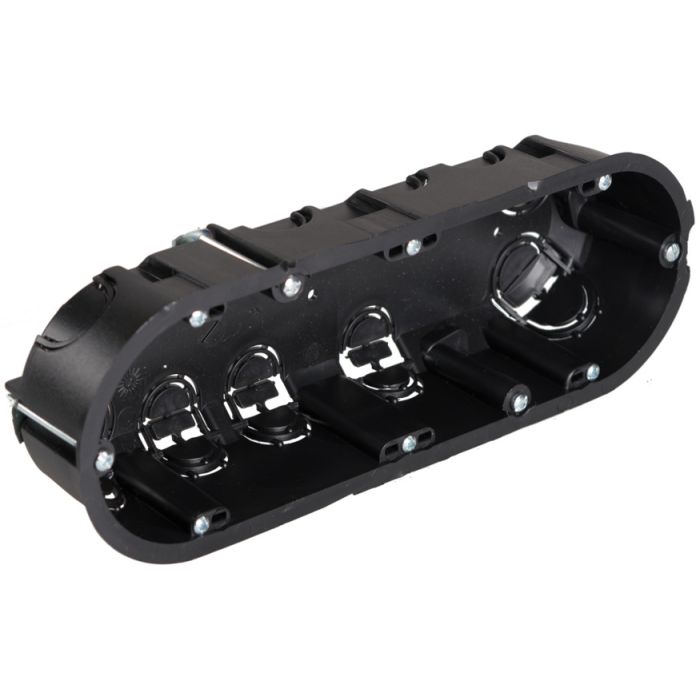

Caja de mecanismos de empotrar en tabique hueco. Para 3 elementos. Fijación con garras metálicas.

Ref: 144472 - EAN: 8423220236691
CAJA EMP.TAB.HUECOS TRIPLE

Descripción

Caja de mecanismos de empotrar en tabique hueco. Para 3 elementos. Dimensiones para empotrar 210 x 68 x 46 mm. 4 entradas para tubo Ø 16-20 mm y 4 entradas para tubo Ø 20- 25 mm. Utilizar una corona Ø 68 mm. Color negro.

Características Técnicas

  • Mounting method Hollow wall
  • Shape Oval
  • Construction type Built-in installation box (device box)
  • Model 3-fold
  • Equipped with None
  • Length 218 mm
  • Width 68 mm
  • Depth 42 mm
  • For number of electric fittings 3
  • Mounting switching equipment Screwing
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter 20/25 mm
  • Number of inlets 6
  • Material Plastic
  • Halogen free Si
  • Colour Black
  • Cover model None
