SOLERA - 5825GW

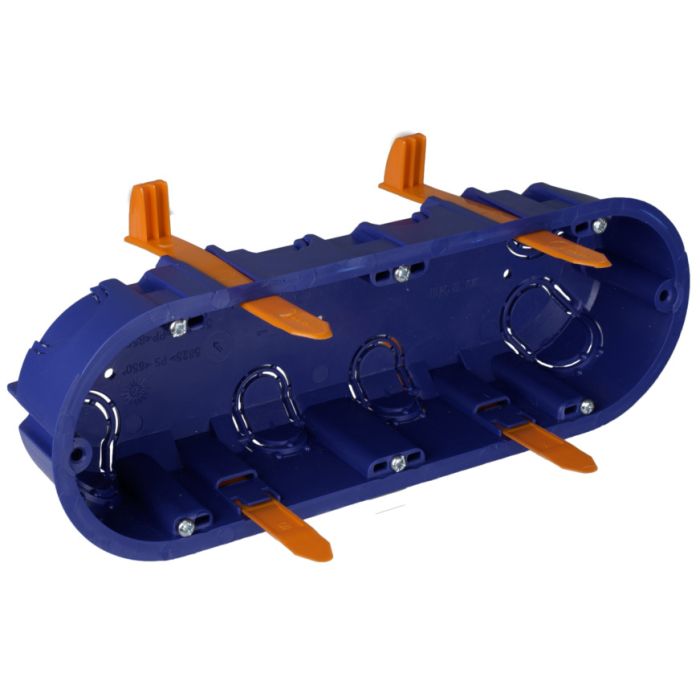

Caja de mecanismos de empotrar en tabique hueco. Para 3 elementos. Sistema de fijación mediante bridas.

Ref: 276648 - EAN: 8423220236721
CAJA EMP.TAB.HUEC TRIPLE BLUE

Descripción

Caja de mecanismos de empotrar en tabique hueco. Para 3 elementos. Sistema de fijación mediante bridas.Dimensiones para empotrar 210 x 68 x 46 mm. 4 entradas para tubo Ø 16- 20 mm, y 4 entradas para tubo Ø 20-25 mm. Utilizar una corona Ø 68 mm. Color azul.

Características Técnicas

  • Mounting method Hollow wall
  • Shape Oval
  • Construction type Built-in installation box (device box)
  • Model 3-fold
  • Equipped with None
  • Length 219 mm
  • Width 68 mm
  • Depth 46 mm
  • For number of electric fittings 3
  • Mounting switching equipment Screwing
  • Housing feed-through by break-out opening Si
  • Housing feed-through by seal membrane No
  • Housing feed-through by nozzle No
  • Housing feed-through by step membrane No
  • For tube diameter 20/25 mm
  • Number of inlets 8
  • Material Plastic
  • Halogen free Si
  • Colour Blue
  • Cover model None
