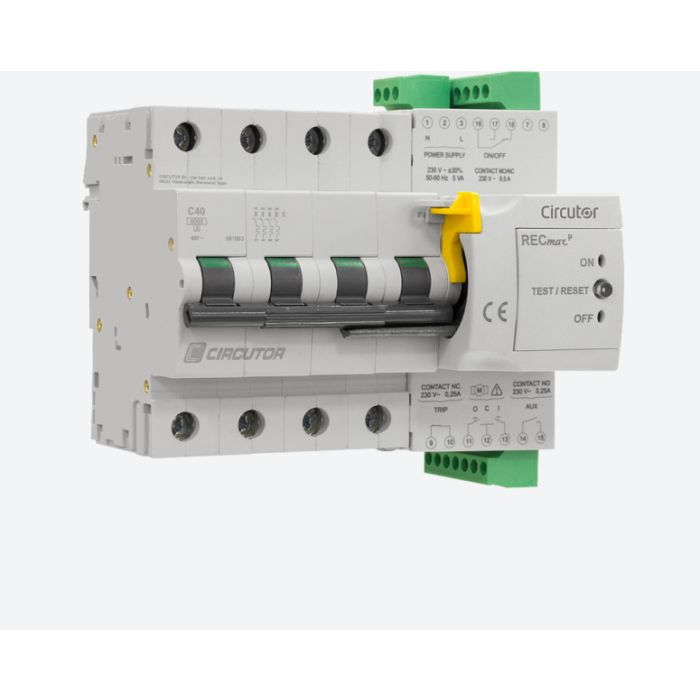

Interruptor automático motorizado autorrearmable, 4 polos curva C

Características Técnicas

• Release characteristic C
• Number of poles (total) 4
• Rated current 40 A
• Rated voltage 230 V
• Rated insulation voltage Ui 240 V
• Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6 kA
• Voltage type AC
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 6 kA
• Frequency 50 Hz
• Degree of protection (IP) Other
