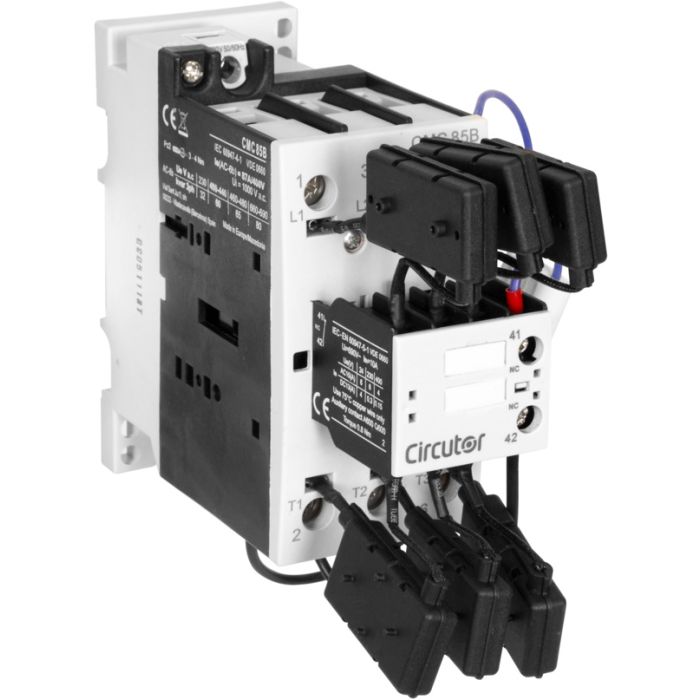

CIRCUTOR - R281B3.

Contactor

Ref: 263363 - EAN: 8433059216917
kit Contactor

Descripción

CMC-85B+RD+CABLES, Contactor;Frecuencia (Hz): 50 / 60;kvar (220-240V): 32;kvar (400-440-480 V): 60;kvar (500-550 V): 70;kvar (660-690 V): 80;Resistencia limitadora: Incluída;Tensión bobina (Vca): 230

Características Técnicas

  • Rated control supply voltage AC 50 Hz 230 V
  • Rated control supply voltage AC 60 Hz 230 V
  • Voltage type for actuating AC
  • Number of auxiliary contacts as normally open contact 0
  • Number of auxiliary contacts as normally closed contact 2
  • Type of electrical connection of main circuit Screw connection
  • Number of normally open contacts as main contact 3
  • Rated blind power at 400 V, 50 Hz 12.5 kvar
